The creation of 001

The creation of 001

A bike that was already iconic, respected and proven, was the first step to choosing the perfect bike for our 001 build. Then came the drawings and research, looking at numerous good and bad examples, visiting shows, flicking through the famous Built magazine, grabbing ideas where possible all helping to create our design.

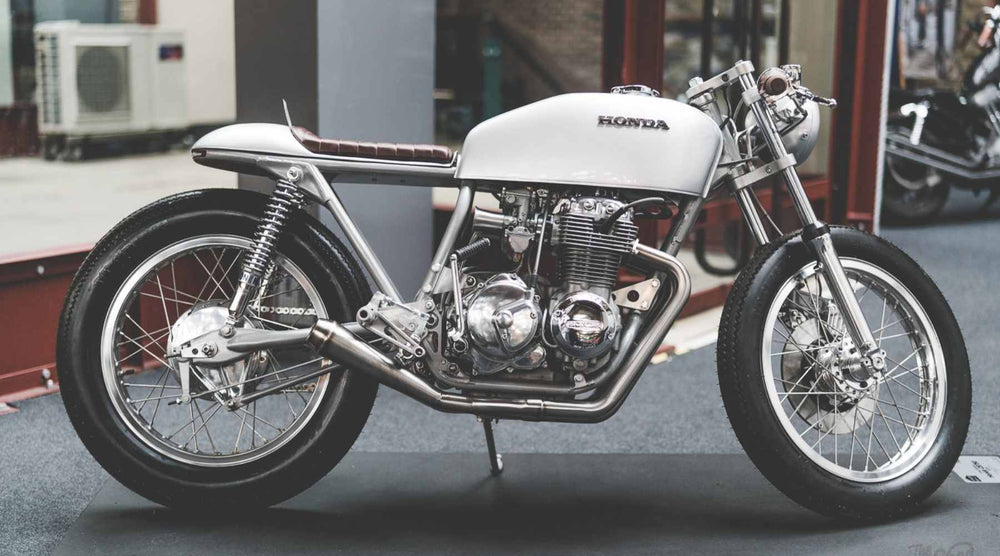

The bike choosen was to be a Honda 1979 CB400f, a true sports bike of its time and now thought of highly.

So like most purchases we started trawling the internet to find the donor. Preston was a 200 mile round trip in one evening, this was where our bike would be. On first appearance we nearly walked away, had we taken on to much or was this a true barn find? The Honda had not moved or started in years, parked neatly at the back of a dusty barn along side many other exmples we pull her out. The small collection was owned by an Ex patriot (Ex Pat) who had a passion for bikes but never the time. We inspected The Honda carefully and had to turn her over by hand.  Everything moved as it should, a clean engine, frame and tank. She was ours and about to start an epic 9 month restoration!

Tear Down

First we stripped the bike back to a rolling chassis before turning our attention to the engine which was split and dismantled. All the parts were neatly boxed and labeled ready to be inspected.  Secondly, the front suspension was stripped along with the wheels and tank.

Everything else was disregarded and binned. The engine, wheel hubs, front suspension, frame and tank were all we needed for this build.

The Engine

So the block, rocker cover, cases and carbs were all Vapour blasted and then polished.  Followed by new engine components:

Pistons & Piston Rings, Bearing shells, Bearings & Seals, Gaskets, Primary Chain & Cam Chain, Chain Tensioner, Stems and Seals, Full Carb Kit, Custom hand turned Velocity Pods.

After a few hard nights in the S.S.S the engine and carbs were fully assembled, timing set and tolorances checked.

The Rolling Chassis

Starting with a complete rebuild of the front forks and new Hagon custom stainless steel rear shocks. A stunning set of polished rims, stainless steel spokes, polished hubs were added and finished off with a pair of classic look tyres. The frame was cleaned of its tags, rear pegs, indicators and brake sensor bracket.

Fresh fabrication included the following:

A custom rear loop with an intergated L.E.D strip, a Cognito Moto head unit with the Motogadet mini and replicated with a billet aluminium lower clamp, Tarozzi classic clip ons, a one off lamp braket, hand fabricated rear cowl and seat unit, under seat electrics tray, 3 polished engine brackets.

This was finished off with billet aluminium rear set brackets to hold the quality Tarozzi race rear sets.

Off To The Painters

Frame was powder-coated in pearl essence silver and the tank wet painted in Porsche silver along with the lamp cover and seat unit. A fresh set of chrome Honda badges and a new chrome fuel cap finished the tank off superbly.

Assembly

The engine installed with its new custom made alternator cover showing off our spitfirespeedshop logo lazer cut in and polished. Chrome brake and clutch levers, a chrome throttle with new neatly cut to size silver cables. A new bright silver chain and sprockets, drum brake assembled with new shoes and springs finished with a polished plate.  New front disc and bolts with a single refurbished and polished caliper.

Electrics & Ignition

We took a twenty first century wiring loom to a 40 year old bike and the results were epic. A Key-less entry, full Motogadget loom with the Motogadget m-unit at the heart, this is powered by an anti gravity battery and controlled by 6 stainless steel push buttons.

The ignition is powered by 2 Dyno-tec ignition coils, matching leads and an upgraded ignition.

The Final Phase

This consisted of a fantastic custom 4 into 2 polished stainless steel exhaust with a floating bracket. Created by hand in a small shed, plenty of man hours and sweat this really is a true piece of engineering.

A hand stitched leather seat finished off the back end and our attention to detail is shown when we fitted 9mm bullet cases to blank off the wing mirror holes and if you look carefully you will see more.

The Big Moment

After 9 months we were ready to sit back and look at what the S.S.S had created. A bike built not bought!

Always a nervous part in any bike build, will she start?

Yes and she did so on the button. We just left her to tick over, warming up slowly before taking her through every gear. The sound was epic, the performance smooth, handling like a true caferacer.

The first Spitfirespeedshop bike was born 001.



Thanks to,

Andy

luke

Mitch

Rob

Pete



Watch this space for 002!
